ElmorLabs EFC-SB SkatterBencher Edition
$50.00
Skip to product information
ElmorLabs EFC-SB SkatterBencher Edition
$50.00
Introducing the new EFC-SB from ElmorLabs, developed in collaboration with renowned overclocker Skatterbencher. This high-performance fan controller boasts a sleek white, black, and yellow color scheme, with a durable 3D-printed case that’s both stylish and practical.

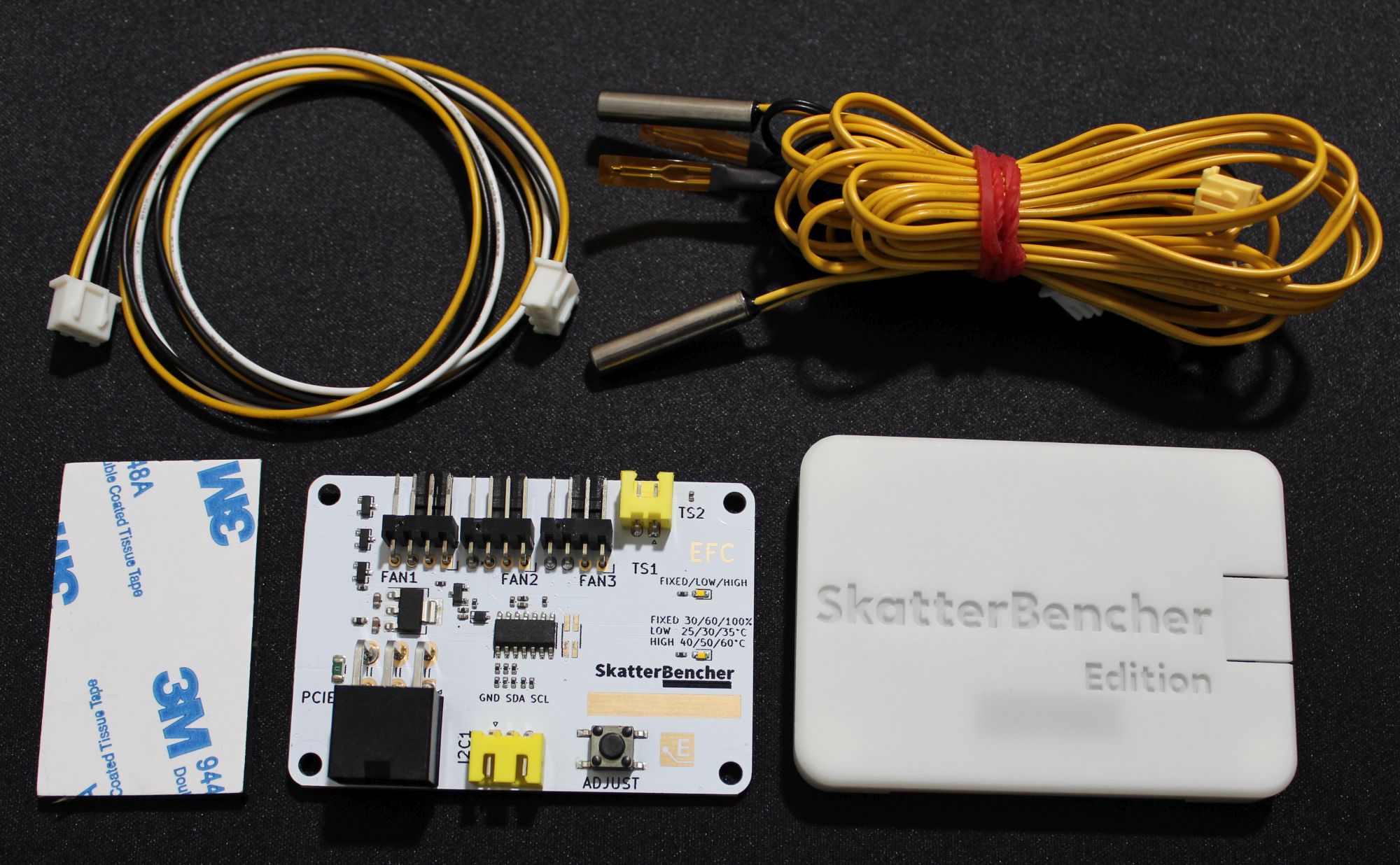

Bundle

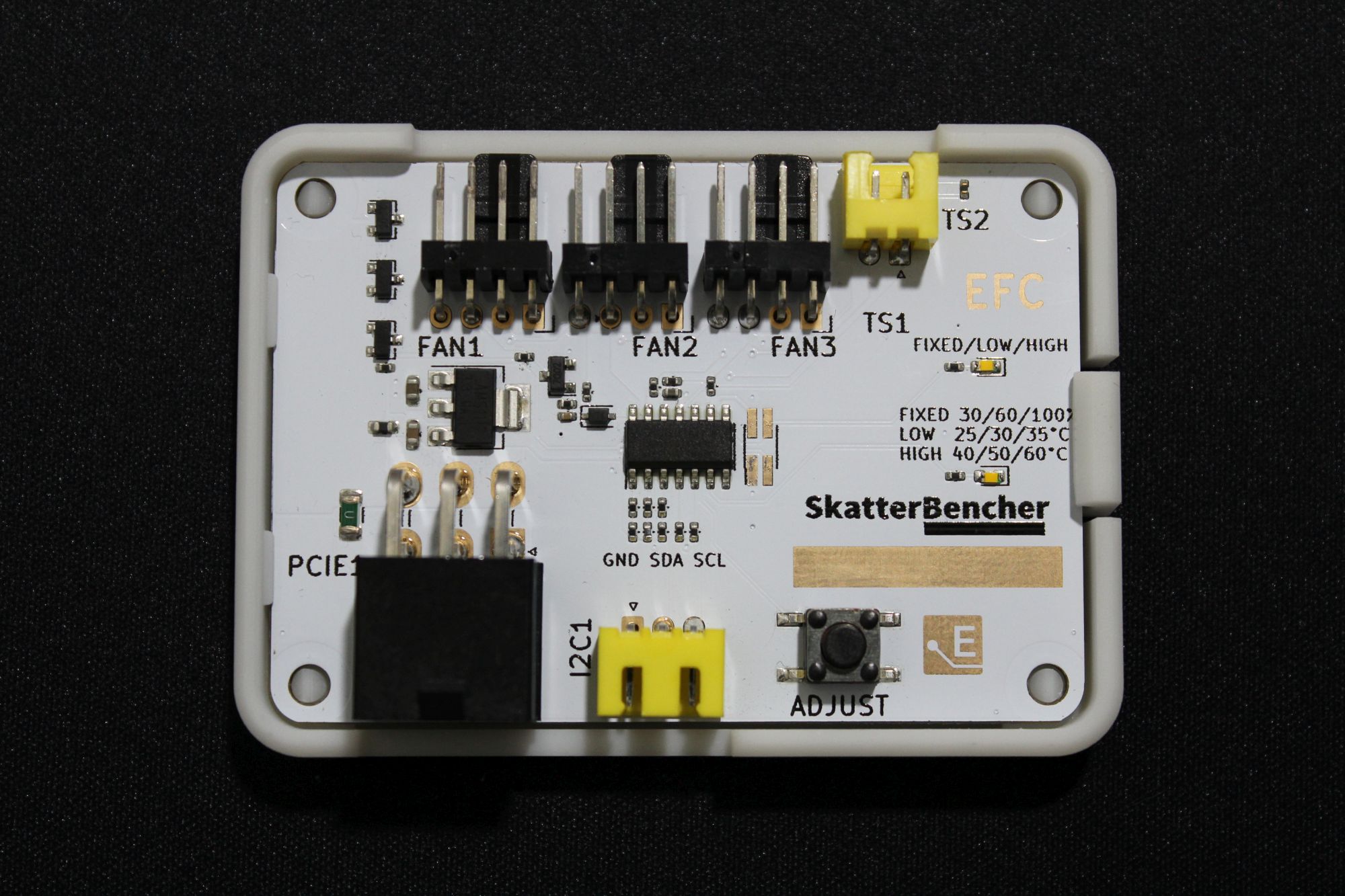

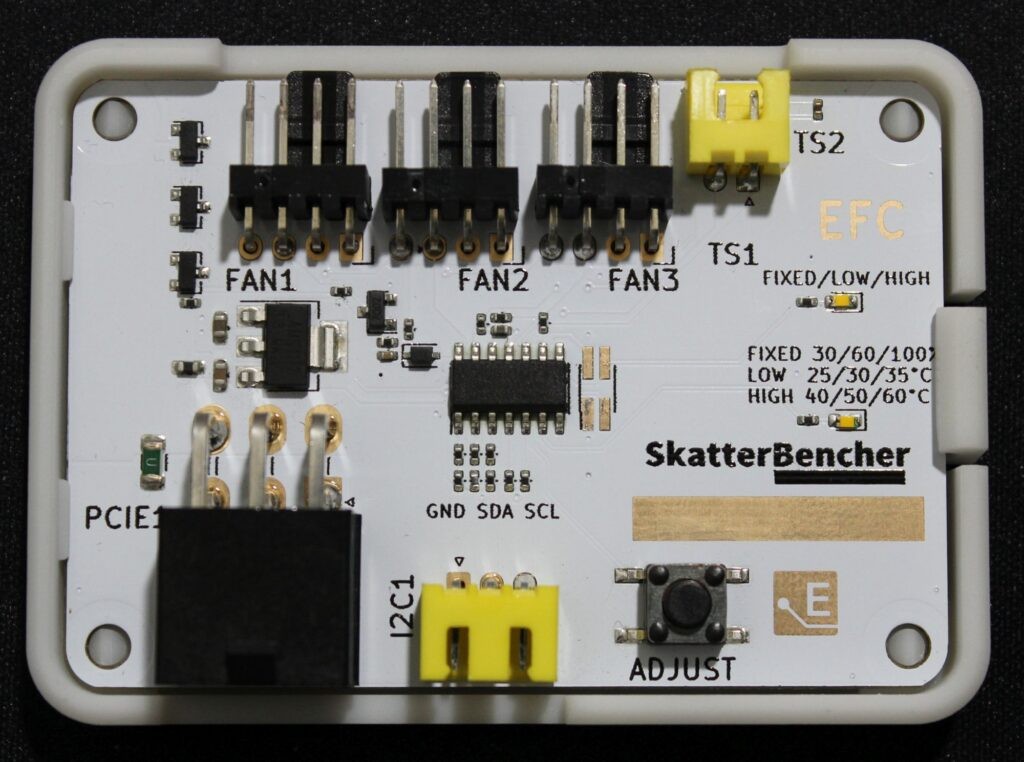

- 1x ElmorLabs EFC-SB (circuit board)
- 2x Thermistor cable 1 m (black, flat tip)
- 2x Thermistor cable 1 m (yellow, waterproof tip)
- 1x I2C cable XH2.5 3-pin to XH2.5 3-pin 0.5 m
- 1x Double-sided tape 50 x 30 x 3 mm (attached to the back of the PCB)
- 1x 3d printed case
Specification
- 3x 4-pin PWM fan headers (FAN1, FAN2, FAN3)
- 1x thermistor cable header (TS1), XH 2-pin (10kohm B25/50=3950 or 3380)
- 1x on-board thermistor (TS2)
- 1x PCI-E 6-pin power connector
- Output power max 120W (10A @ 12V)
- Dimensions 66.4 x 46.4 mm
- Mounting hole dimensions 60 x 40 mm M3
